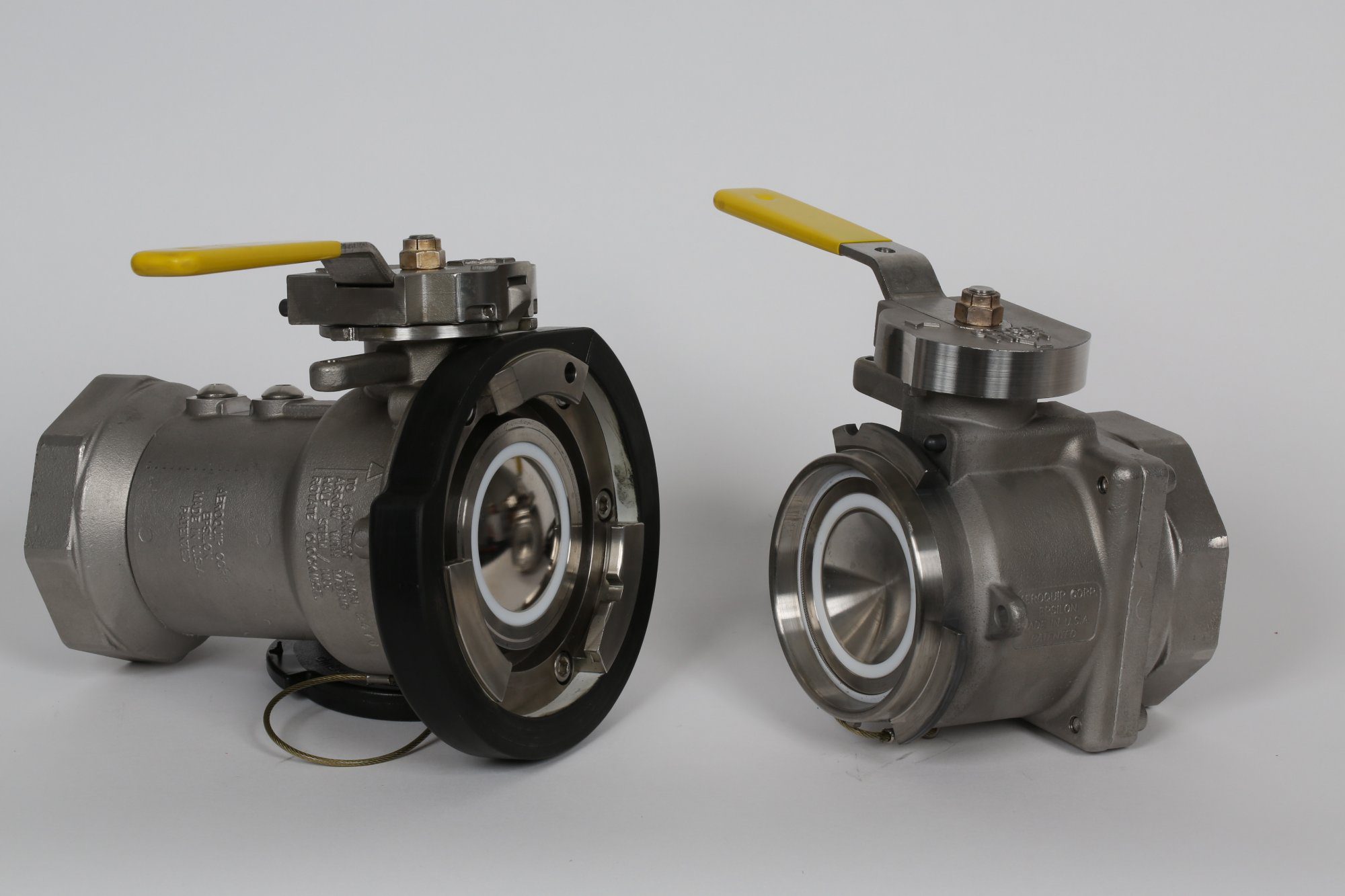

EPSILON LOW SPILL COUPLING SYSTEM

Call for price

Description

Applications:

• Bulk storage
• In-plant processing
• Reactor units
• Filtration units
• Tank Car
• Rail Car

Next generation PTFE with best combination of temperature, sealing, and sliding characteristics

Temp Range:
• -22°F to +450°F

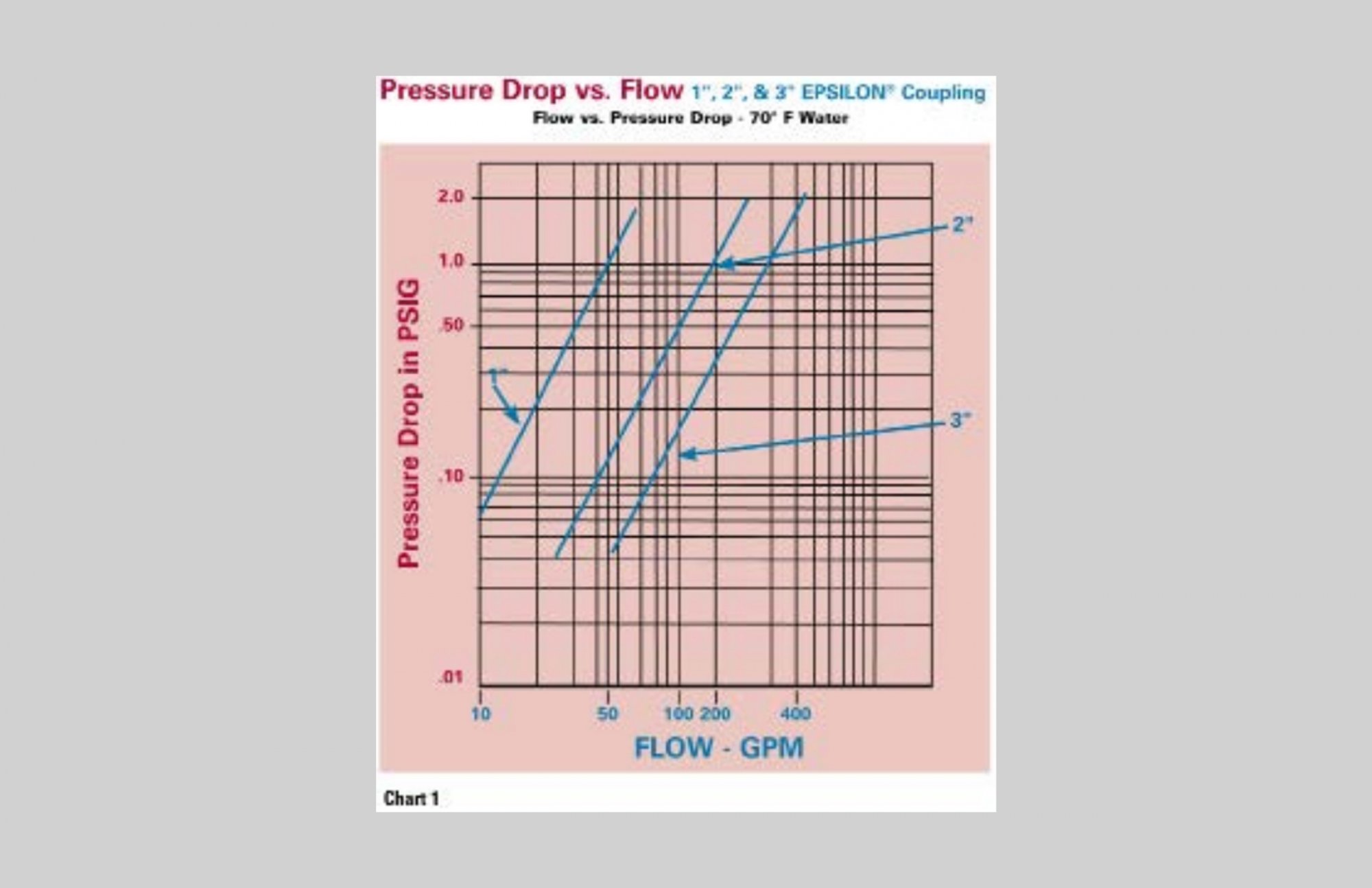

The features of the EPSILON® dry disconnect coupling are extensive. Chart 1 below provides the specifics of these features.

• Flow rates from 50 GPM for the 1” to 300 GPM for the 3” product line. This coupling will keep up with demand, whatever your application.
• Flow coefficient (Cv) for valves. Flow rate shown in gallons per minute of 70°F water with 1.0 psi, pressure drop across the valve, 2”coupling features (Cv) of 160.
• Fugitive emissions of less than 25 ppm, is standard. In most cases, it is below the limit of analytical detection.

Valve Size EPSILON® couplings can be attached to hose or pipe sizes ranging from 3/4” to 3” or DN 20 to DN 80.
There are three different valve body sizes that are machined to accept the different sizes and different connection types. Chart 2 indicates the valve body size that would be used with a given port size.







Specifications

Size Spillage

Maximun

Spillage

Flow Rate CV

Max Working

Pressure

Weight

Adapter

Weight

Coupler

1" <0.7 ml <25PPM 50 GPM 42 435 PSIG 2.7 lbs 3.0 lbs
2" <0.6 ml <25PPM 150GPM 160 435 PSIG 4.0 lbs 6.0 lbs
3"   <2.0 <25PPM 300GPM 240 360 PSIG 16.0 lbs 20.0 lbs
