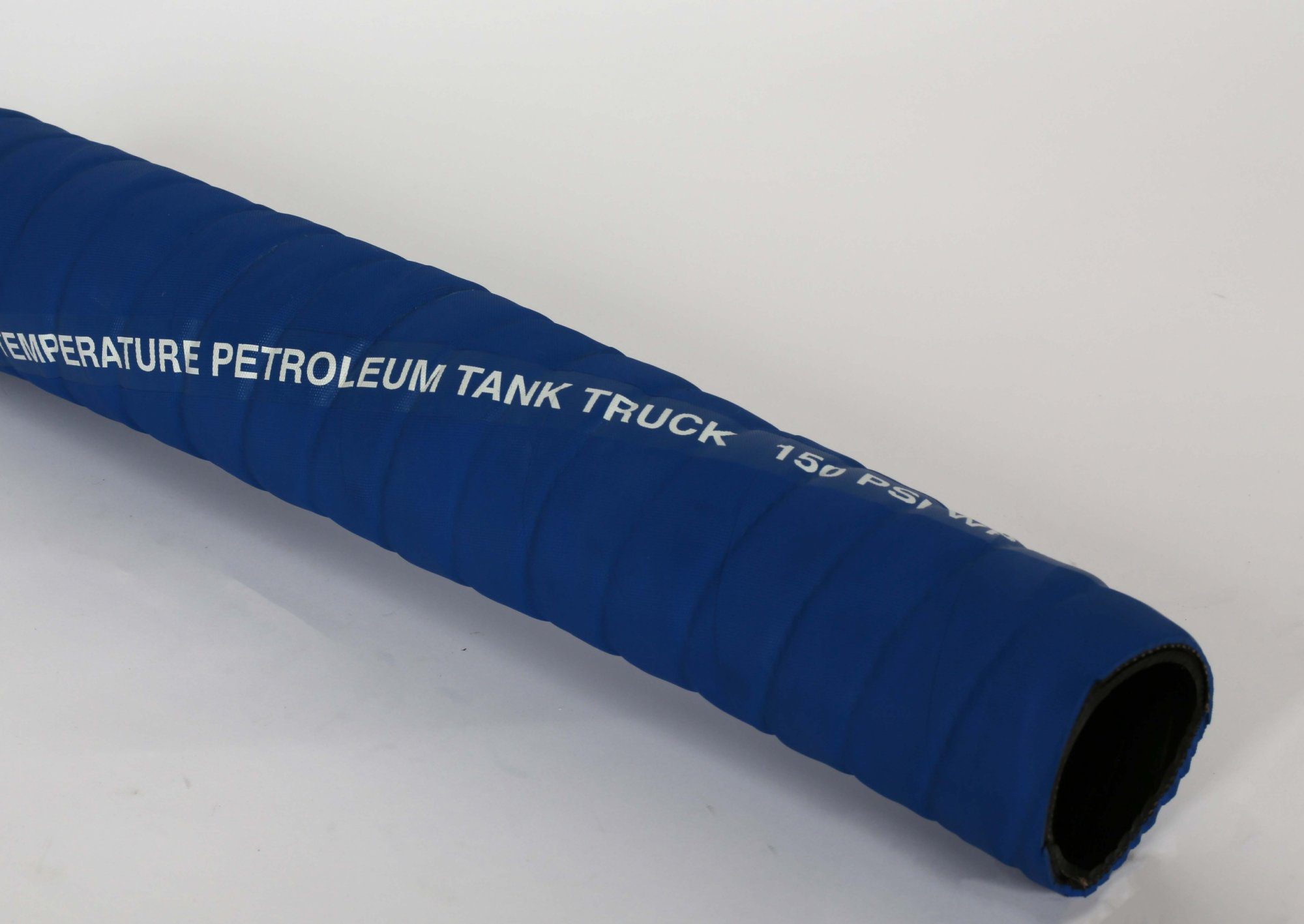

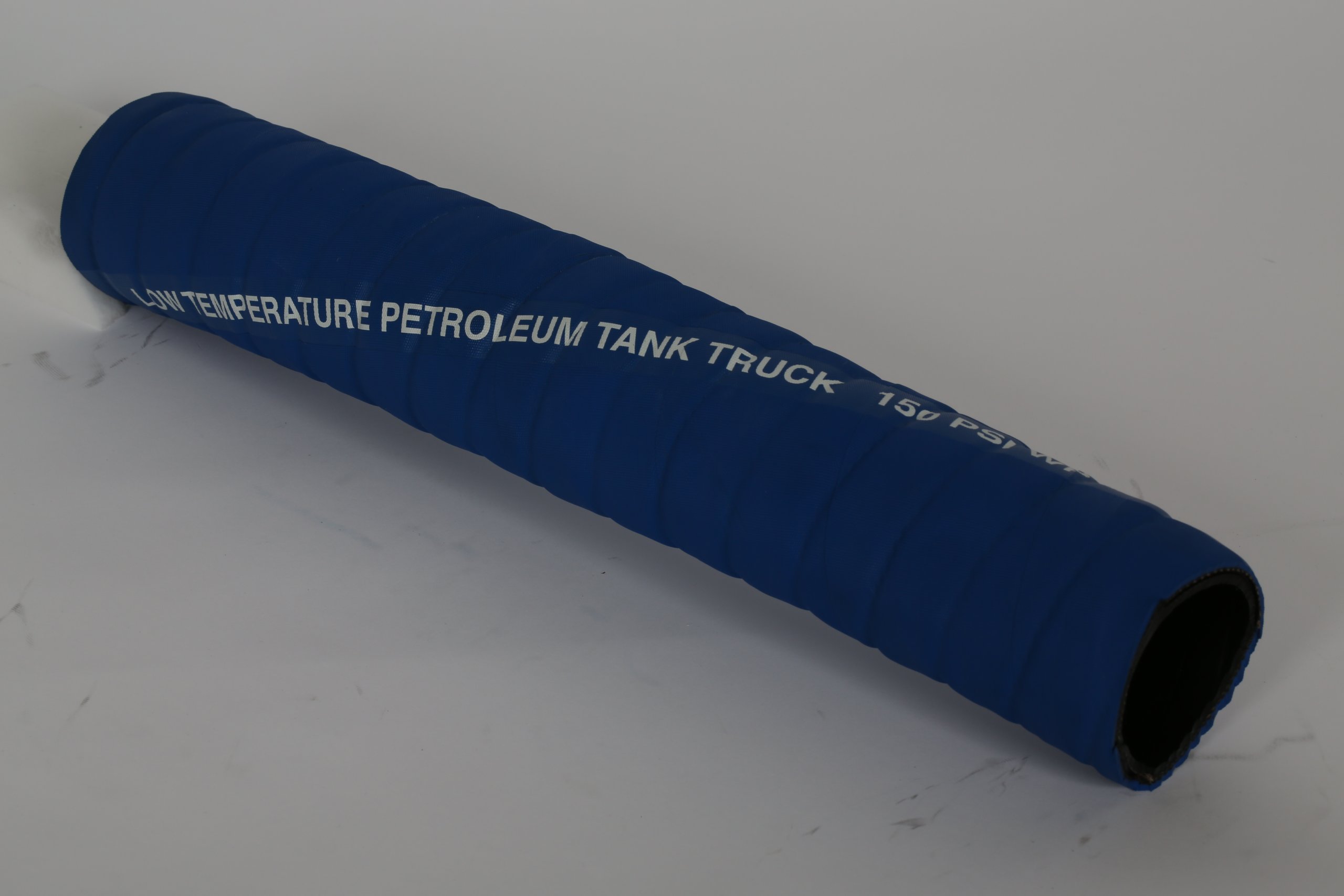

CONTITECH LOW TEMP PETROLEUM TANK TRUCK

Applications:  Transfer of gasoline and other petroleum based products where low temperature rating is desired (-65°F to 180°F).

Category:

Description

Applications:
• For the transfer of gasoline and other petroleum
based products under pressure, gravity flow or full
suction where a low temperature rating is desired.
Tube:
• Black Nitrile
Reinforcement:
• Spiral plied two steel wires
Cover:
• Blue SBR (Corrugated)
Temp Range:
• -65°F to +180°F (-54°C to +82°C)

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Weight

(lbs/ft)

Standard

Length (ft)

GATT200 2 2 33/64 150 1.13 100
GATT300 3 3 17/32 150 1.86 100
GATT400 4 4 19/32 150 2.67 100
