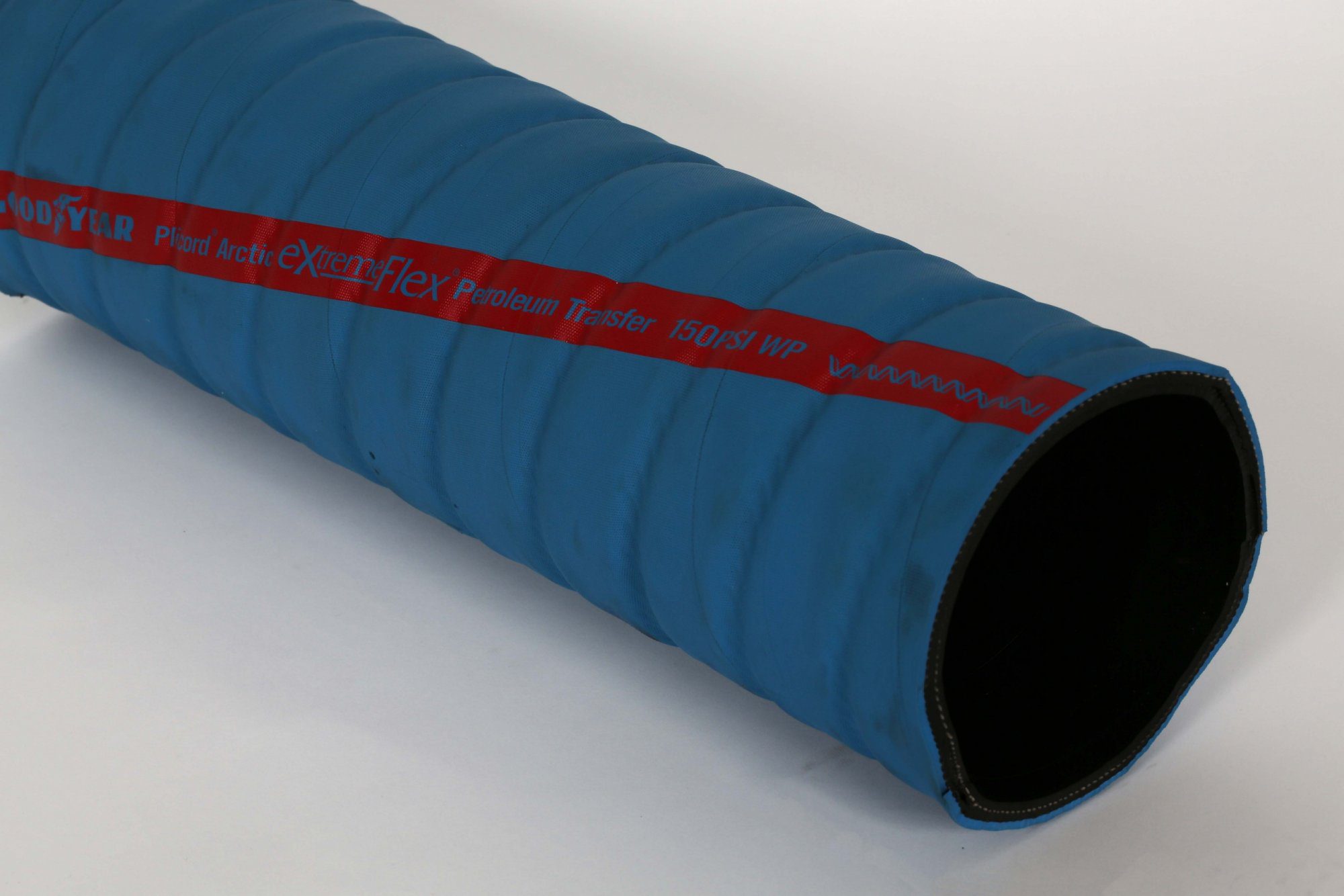

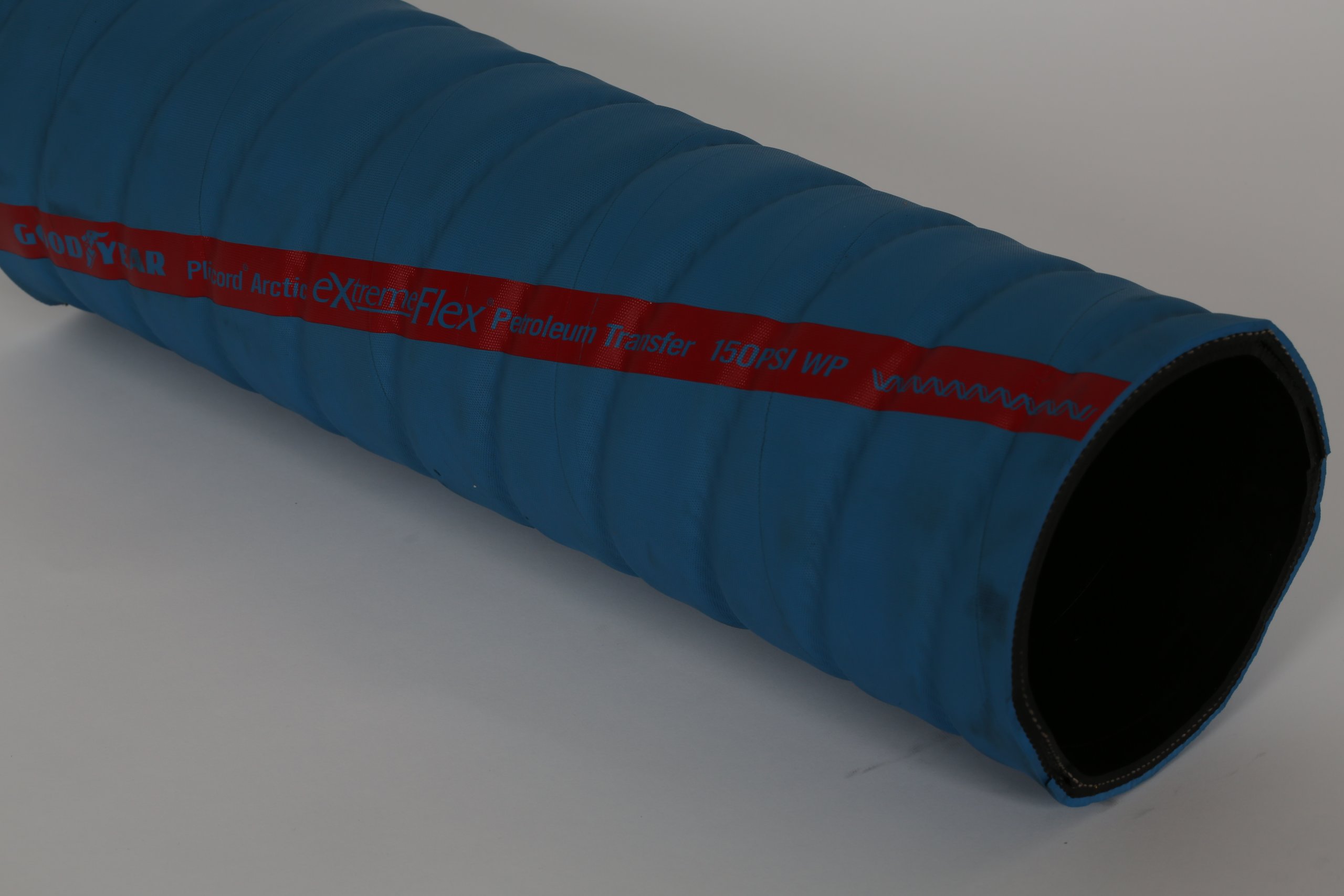

CONTITECH PLICORD ARCTIC EXTREMFLEX

Applications: Designed for the transfer of petroleum based products at low temperatures (down to -65°F)

Category:

Description

Applications:
• An extremely flexible lightweight drop hose for
transfer of petroleum-based products under suction,
low-pressure discharge or gravity flow. Flexibility
maintained down to -65°F(-54°C)
Tube:
• Black Nitrile, RMA Class A (High Oil Resistance)
Reinforcement:
• Spiral plied synthetic fabric with double wire helix
Cover:
• Corrugated black wingprene synthetic rubber (wrapped
impression), blue spiral stripe
Corrugated blue wingprene synthetic rubber (wrapped
impression), red spiral stripe
Temp Range:
• -65°F to +180°F (-54°C to +82°C)

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Weight

(lbs/ft)

Standard

Length (ft)

GPAEFP200 2 2.5 150 1.08 100
GPAEFP300 3 3.48 150 1.62 100
GPAEFP400 4 4.55 150 2.35 100
