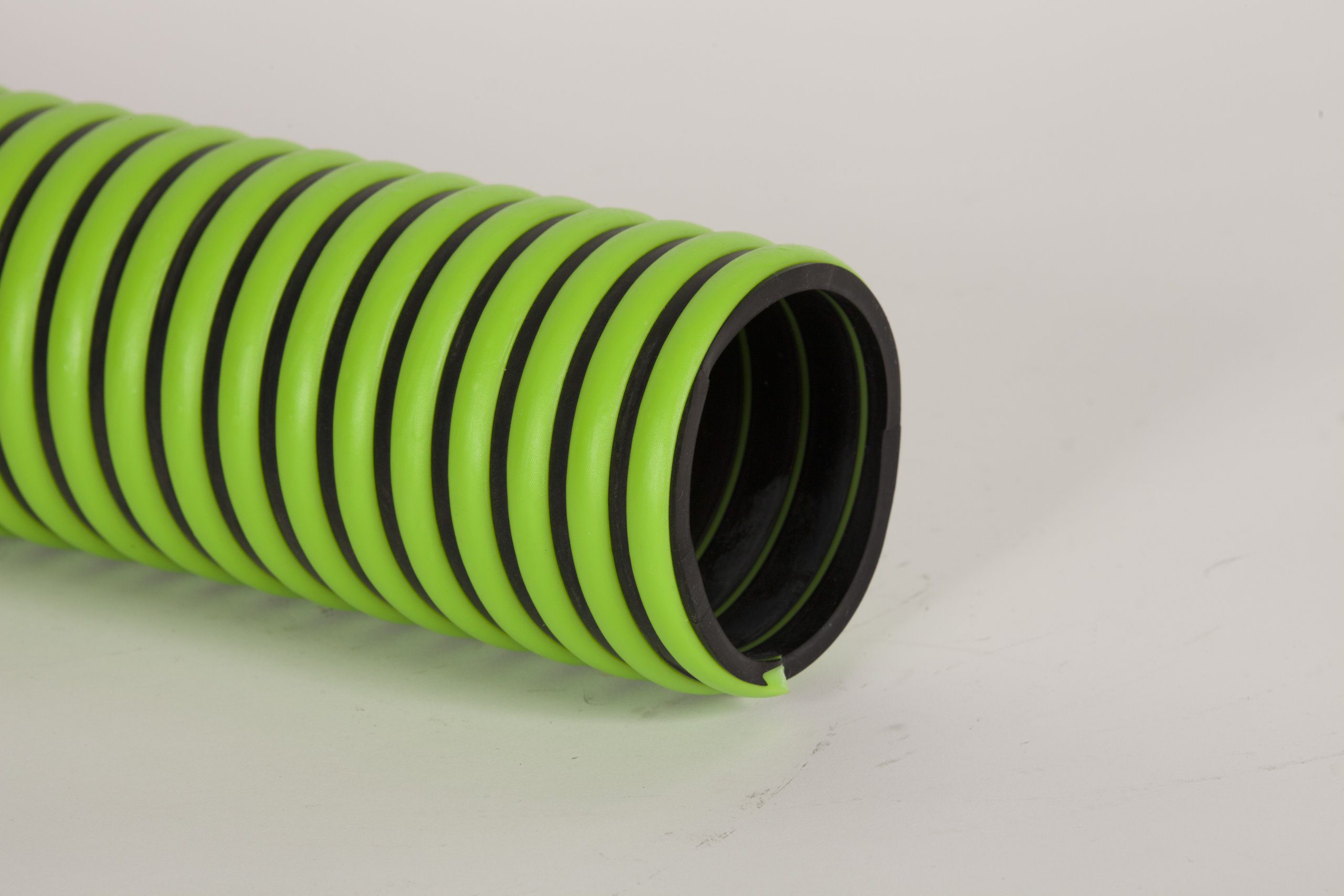

KANAFLEX 300EPDM WATER SUCTION & DISCHARGE HOSE

Applications: Liquid suction hose for use in construction dewatering, liquid waste, cesspool cleaning, septic handling and agricultural applications

Note: External helix provides easy drag

Description

Applications:
• Heavy duty liquid suction hose for use in construction dewatering, liquid waste, cesspool cleaning, septic handling, agricultural applications and marine use
Tube:
• Smooth bore black EPDM rubber
Reinforcement/Cover:

• Corrugated green polyethylene helix

Temp Range:
• -40°F to +140°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Vacuum

72°F, in.Hg

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length (ft)

300EPDM100 1 1.34 29.8 50 1.9 .23 100
300EPDM125 1 1/4  1.65 29.8 50 3.2 .34 100
300EPDM150 1 1/2 1.84 29.8 50 3.2 .40 100
300EPDM200 2 2.43 29.8 50 5.2
.67 100
300EPDM250 2 1/2 2.99

29.8

50 5.6 .92 100
300EPDM300 3 3.52 29.8 43 7.1 1.10 100
300EPDM400 4 4.61 29.8 38 11.0 1.84 100
300EPDM600 6 6.81 29.0 23 20.0 3.07 100
