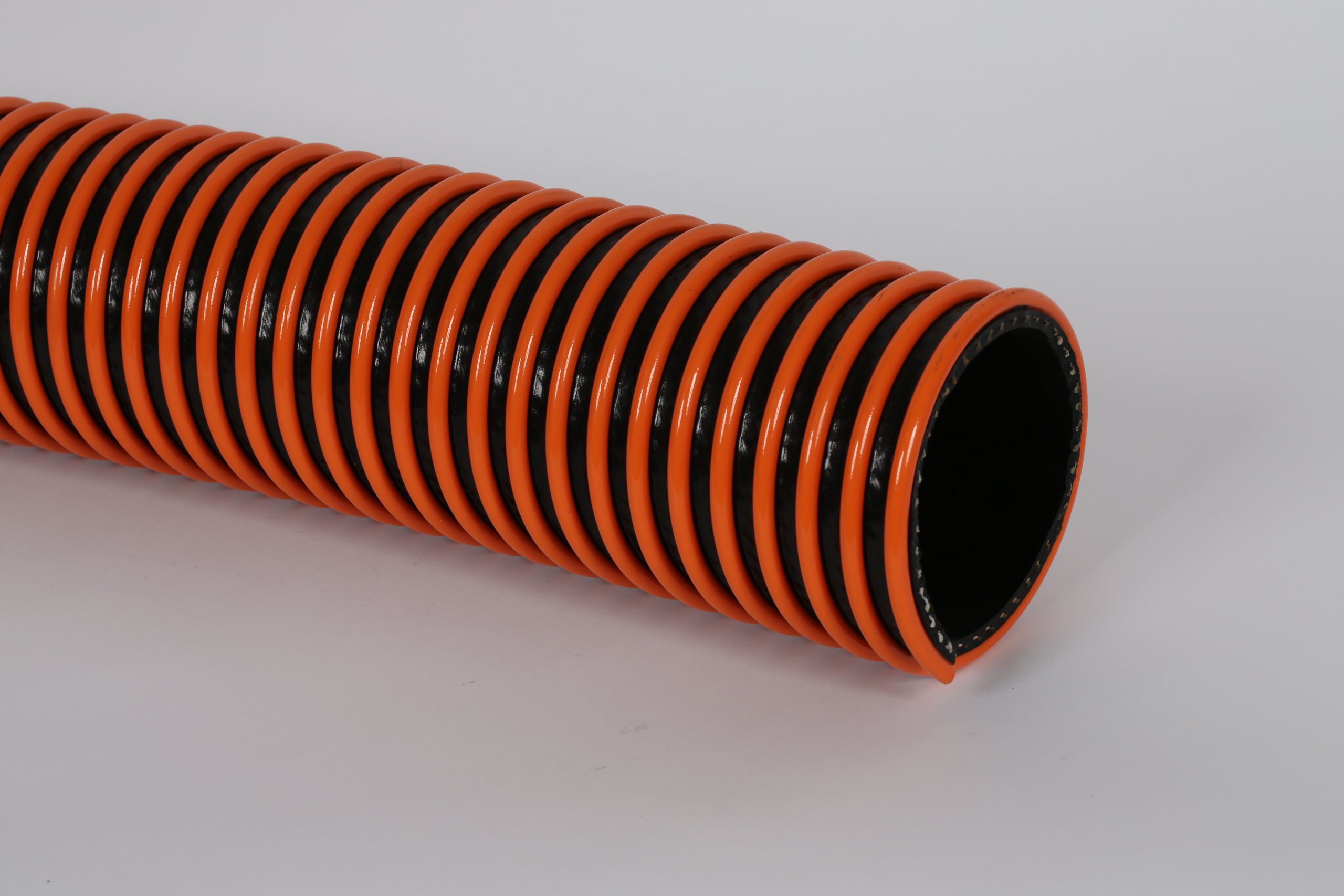

KANAFLEX ST120LT – NITRILE TUBE

DROP HOSES

Applications: Used for gasoline tank truck gravity drop. Flexible and lightweight.

Category:

Description

Applications:
• Gasoline tank truck gravity drop for such items
as naphtha, kerosene, light and heavy oil, and
gasohol
• Rated for up to 40% aromatic content
Tube:
• Vinyl Nitrile – Smooth Bore
Reinforcement:
• Synthetic Braiding
Cover:
• Corrugated Rigid orange PVC Helix – Builtin static
grounding wire
Temp Range:
• -30°F to +140°F

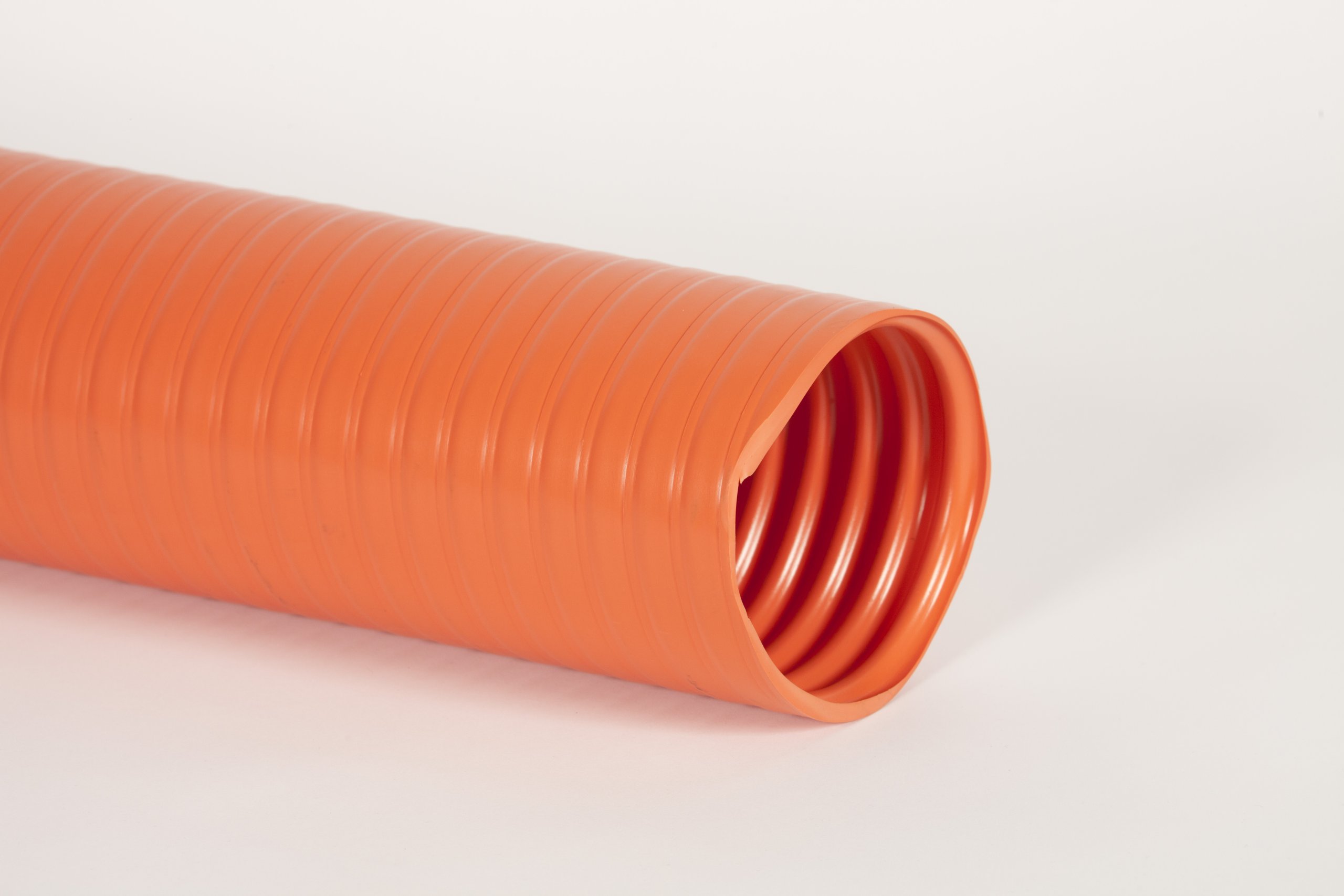

Banding Sleeves for KanaFlex
ST120LT Drop Hose. Banding sleeves
must be used for 3” and 4” sizes to
relieve stress behind fitting.

Specifications

Part #

I.D

(in)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length (ft)

ST120LT200 2 2.68 65 5.0 1.13 100
ST120LT300 3 3.68 65 6.0 1.37 100
ST120LT400 4 4.82 65 8.0 2.16 100



Banding Sleeves for KanaFlex
ST120LT Drop Hose. Banding sleeves
must be used for 3” and 4” sizes to
relieve stress behind fitting.



Part #

I.D

(in.)

Weight

(lbs/ft)

Standard

Length (ft)

BS300 3 1.15 3
BS400 4 1.48 3
