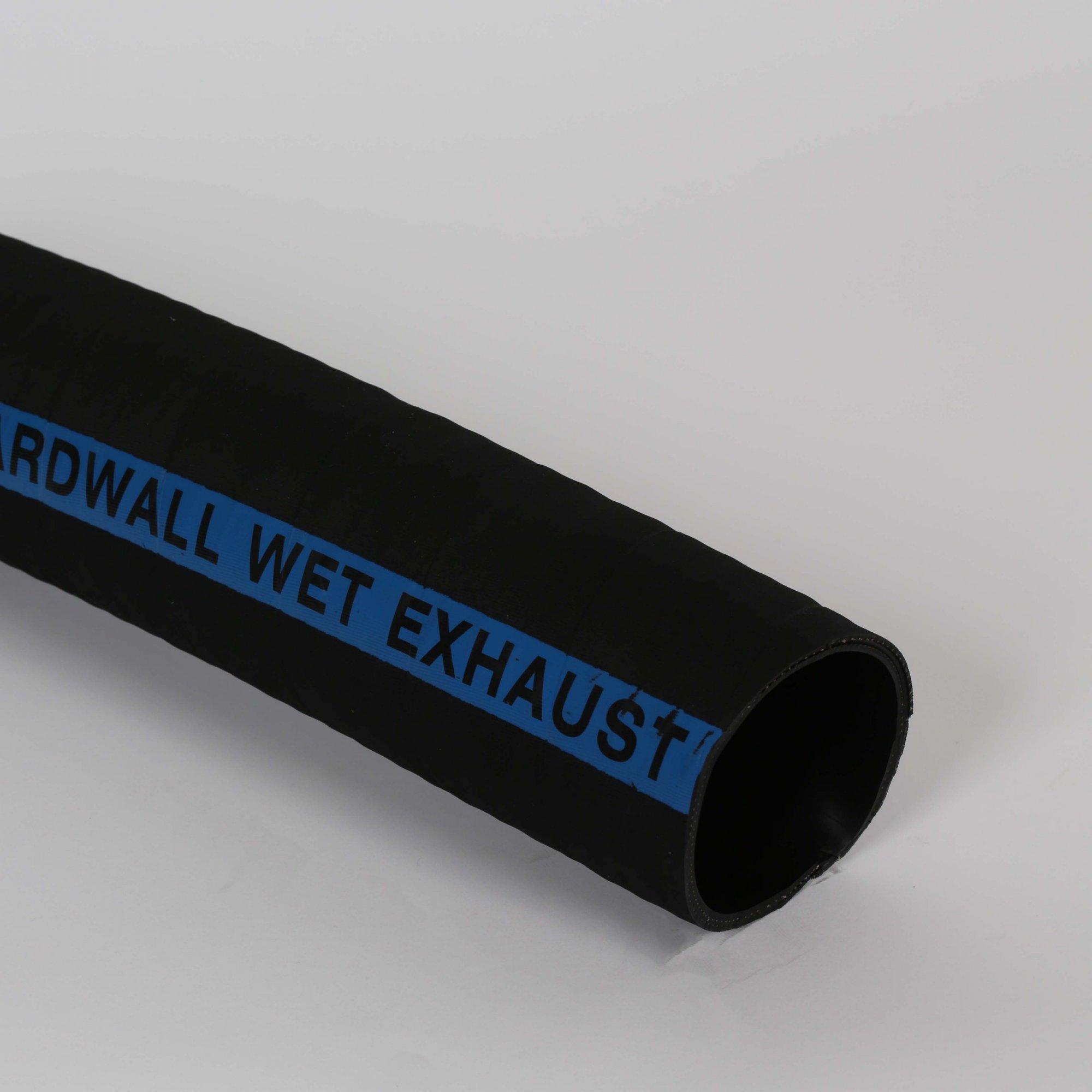

MARINE EXHAUST HARDWALL HOSE

Applications: Used in marine exhaust applications where a hose made to Coast Guard specifications is required

Description

Applications:
• Marine exhaust applications where a hose made to Coast Guard specifications is required
* Resistant to heat, and weather
Tube:
• Black rubber specially compounded for
marine use
Reinforcement:
• High tensile wire helix embedded between layers of textile cords
Cover:
• Black synthetic rubber with blue
identification stripe
Temp Range:
• -40°F to +212°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Weight

(lbs/ft)

Standard

Length (ft)

MEH078 7/8 1.25 .50 100
MEH100 1 1.38 .57 100
MEH118 1 1/8 1.40 .58 100
MEH125 1 1/4 1.69 .68 100
MEH138 1 3/8 1.81 .75 100
MEH150 1 1/2 1.81 .82 100
MEH163 1 5/8 1.97 1.10 100
MEH175 1 3/4 2.09 1.06 100
MEH178 1 7/8 2.20 1.14 100
MEH200 2 2.32 1.33 100
MEH2125 2 1/8 2.50 1.39 100
MEH225 2 1/4 2.60 1.54 100
MEH238 2 3/8 2.68 1.71 100
MEH250 2 1/2 2.81 1.82 100
MEH258 2 5/8 3.00 2.06 100
MEH278 2 7/8 3.35 2.08 100
MEH300 3 3.54 2.12 100
MEH318 3 1/8 3.70 2.35 100
MEH350 3 1/2 4.09 2.62 100
MEH400 4 4.57 3.02 100
MEH418 4 1/8 4.64 2.75 100
MEH450 4 1/2 5.12 3.57 100
MEH500 5 5.55 3.59 100
