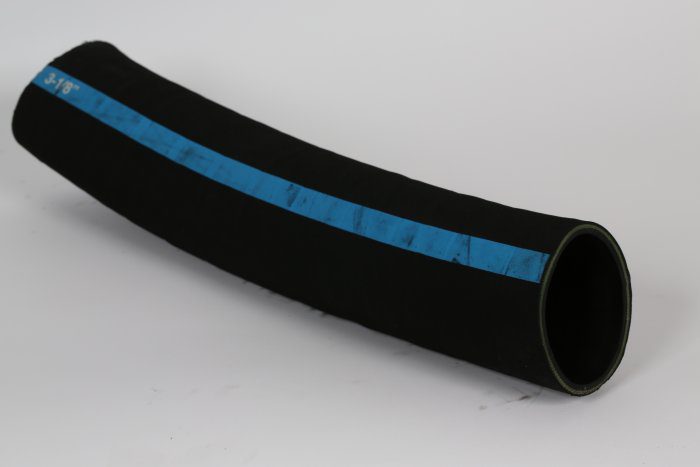

MARINE EXHAUST SOFTWALL HOSE

Applications: Used in marine exhaust applications where a hose made to Coast Guard specifications is required

Description

Applications:
• Marine exhaust applications where a hose made to Coast Guard specifications is required
• Resistant to heat, and weather
Tube:
• Black rubber specially compounded for wet marine exhaust service
Reinforcement:
• Multiple piles of synthetic fabric
Cover:
• Black synthetic rubber with blue
identification stripe
Temp Range:
• -40°F to +212°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Weight

(lbs/ft)

Standard

Length (ft)

MEHNW078 7/8 1.26 .44 100
MEHNW100 1 1.38 .49 100
MEHNW118 1 1/8 1.50 .52 100
MEHNW125 1 1/4 1.69 .68 100
MEHNW138 1 3/8 1.81 .77 100
MEHNW150 1 1/2 1.93 .79 100
MEHNW163 1 5/8 2.13 .93 100
MEHNW175 1 3/4 2.20 1.01 100
MEHNW178 1 7/8 2.32 1.01 100
MEHNW200 2 2.50 1.21 100
MEHNW213 2 1/8 2.62 1.25 100
MEHNW225 2 1/4 2.76 1.38 100
MEHNW238 2 3/8 2.91 1.55 100
MEHNW250 2 1/2 3.05 1.63 100
MEHNW263 2 5/8 3.23 1.85 100
MEHNW278 2 7/8 3.42 1.88 100
MEHNW300 3 3.54 1.90 100
MEHNW313 3 1/8 3.70 2.09 100
MEHNW350 3 1/2 4.09 2.30 100
MEHNW400 4 4.57 2.41 100
MEHNW413 4 1/8 4.69 2.53 100
MEHNW450 4 1/2 5.12 3.23 100
