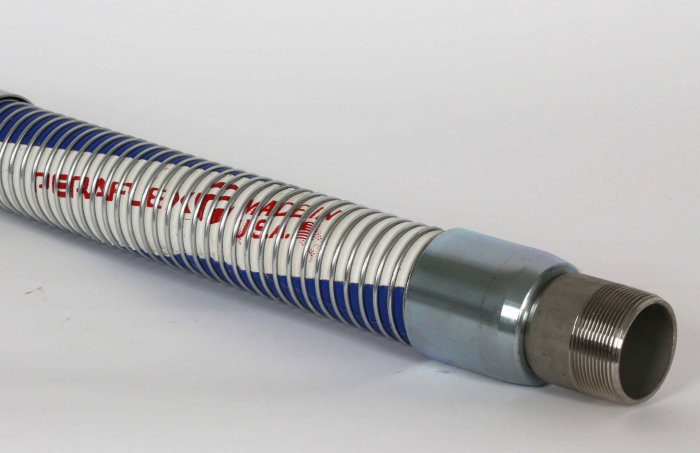

PERAFLEX GGP HYDRO CARBON HOSE

GGP is designed for transferring a range of fuels, lubricants, heavy oils, and 100% aromatics in pressure or suction applications.

SKU: N/A
Categories: ,

Description

Applications:
• Transfer of hydrocarbon products; petroleum, diesel,
kerosenes, fuel oils, solvents
• Rated for 100% aromatic content
• Resists abrasion, ozone, and fire w/ a 5 to 1 safety ratio
Tube:
• Seamless polypropylene tubes and film barriers
Reinforcement:
• Internal wire: galvanized
• External wire: galvanized
Cover:
• Black vinyl coated polyester
Temp Range:
• -40°F to +212°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius ( in.)

Weight

(lbs/ft)

Standard

Length

GGP100 1 - 200 2.0 .65 80
GGP125 1 1/4 - 200 - - 80
GGP150 1 1/2 - 200 3.0 1.0 80
GGP200 2 - 200 3.5 1.2 80
GGP250 2 1/2 - 200 4.0 2.0 80
GGP300 3 - 200 5.5 2.4 80
GGP400 4 - 200 6.5 3.5 80
GGP600 6 - 200 22.0 7.4 50
GGP800 8 - 200 29.0 12.5 50

Additional information

Diameter

1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 6", 8"
