RFH-W – WEAR STRIP ON RFH HOSE

General purpose ducting with an additional wear strip to protect the wire from wear-through

SKU: N/A
Category:

Description

Applications:
• Same as RFH but has an additional wear strip which covers the wire.
* Strip is molecularly bonded to the hose to ensure there is no pre-mature wire wear-through
Temp Range:
• -60°F to +275°F (intermittent to 300°F)

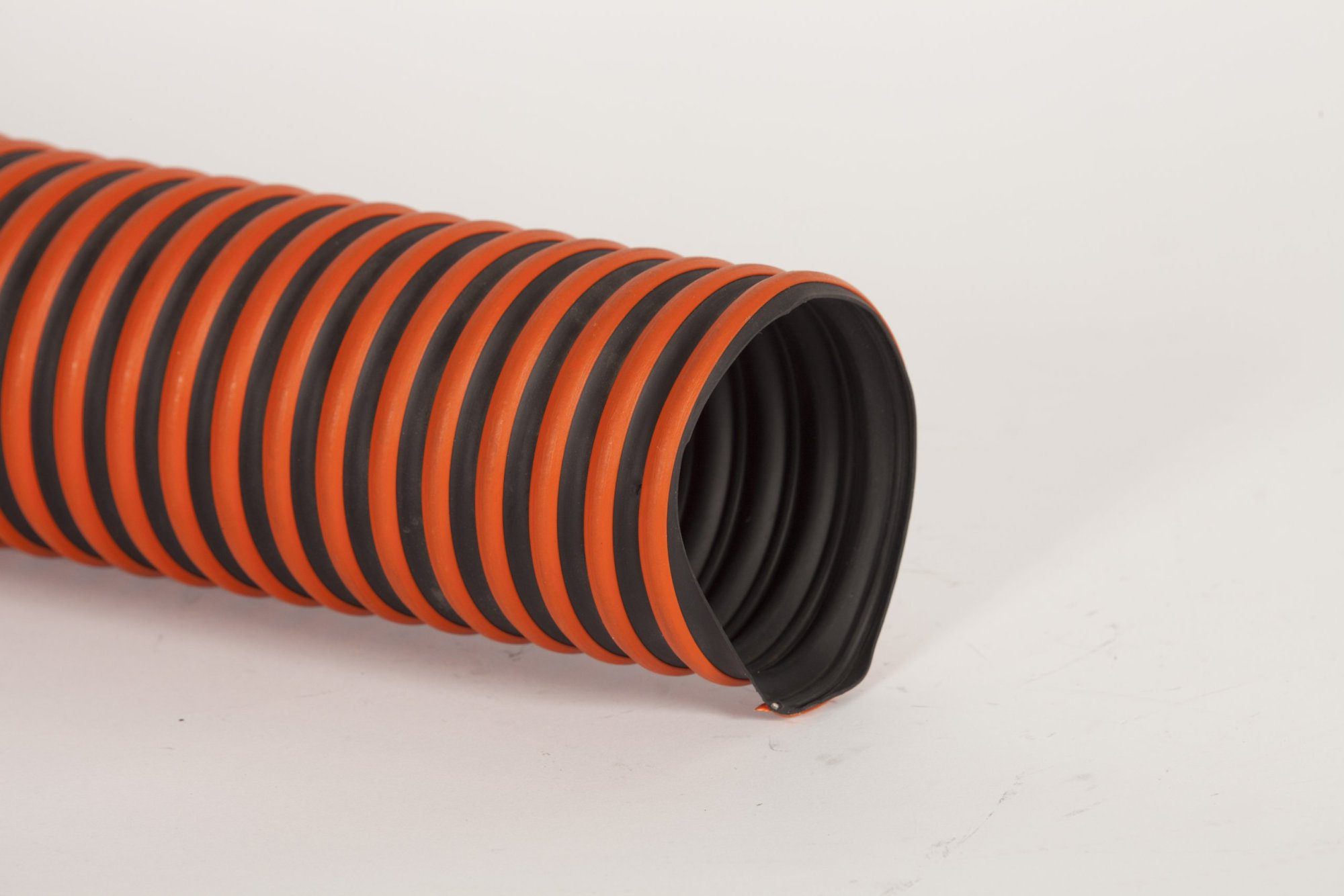

Colour is black with orange wear strip

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

length

RFHBK200WSOR 2 2.32 17 3.00 0.26 25 , 50
RFHBK300WSOR 3 3.32 10 4.25 .37 25 , 50
RFHBK400WSOR 4 4.32 10 6.00 .57 25 , 50
RFHBK500WSOR 5 5.32 9 6.75 .75 25 , 50
RFHBK600WSOR 6 6.32 8 8.25 1.00 25 , 50
RFHBK800WSOR 8 8.40 6 10.25 1.60 25 , 50
RFHBK1000WSOR 10 10.43 4 12.75 2.05 25 , 50
RFHBK1200WSOR 12 12.43 4 15.25 2.24 25 , 50
RFHBK1400WSOR 14 14.63 2 21.00 2.32 25 , 50
RFHBK1600WSOR 16 16.63 2 26.00 2.74 25 , 50
RFHBK1800WSOR 18 18.63 2 29.00 2.96 25 , 50
RFHBK2000WSOR 20 20.63 1 36.00 4.27 25 , 50
RFHBK2400WSOR 24 24.63 1 42.00 4.42 25 , 50

Additional information

Diameter

2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24"
