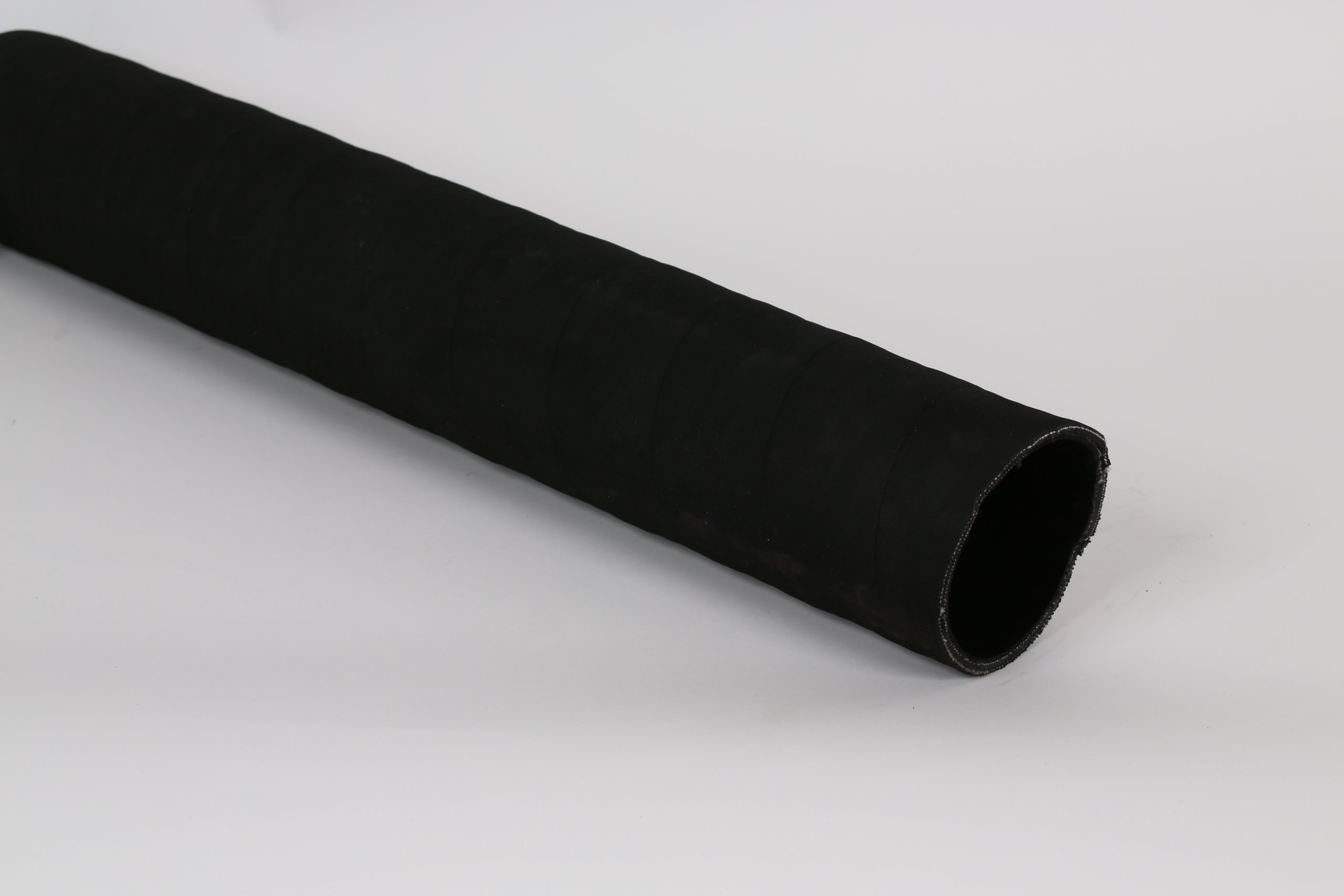

RUBBER WATER SUCTION & DISCHARGE HOSE – HARDWALL

Applications: Resists abrasion during use on construction sites and general water service

Description

Applications:
• A heavy duty wire reinforced rubber hose for
construction, quarries, and general use
• Resists abrasion and weather
Tube:
• Smooth black synthetic rubber
Reinforcement:
• High tensile wire helix embedded between layers
of textile cords
Cover:
• Black smooth synthetic rubber

Temp Range:
• -22°F to +150°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Vacuum

(in.Hg)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length (ft)

RWS075 3/4 1.14 29 200 2.0 .50 100
RWS100 1.42 29 150 3.0 .68 100
RWS125 1 1/4 1.65 29 150 4.0 .77 100
RWS150 1 1/2 1.93 29 150 4.0 1.00 100
RWS200 2.48 29 150 5.0 1.45 100
RWS250 2 1/2 2.99 29 150 8.0 1.84 100
RWS300 3 3.50 29 150 10.0 2.23 100
RWS400 4 4.64 29 125 14.0 3.72 100
RWS500 5 5.67 29 125 20.0 3.90 100
RWS600 6 6.66 29 125 30.0 5.10 100
RWS800 8 8.90 29 50 65.0 8.83 60
RWS1000 10 10.90 29 50 80.0 12.00 40
RWS1200 12 12.99 29 50 100. 18.57 20
