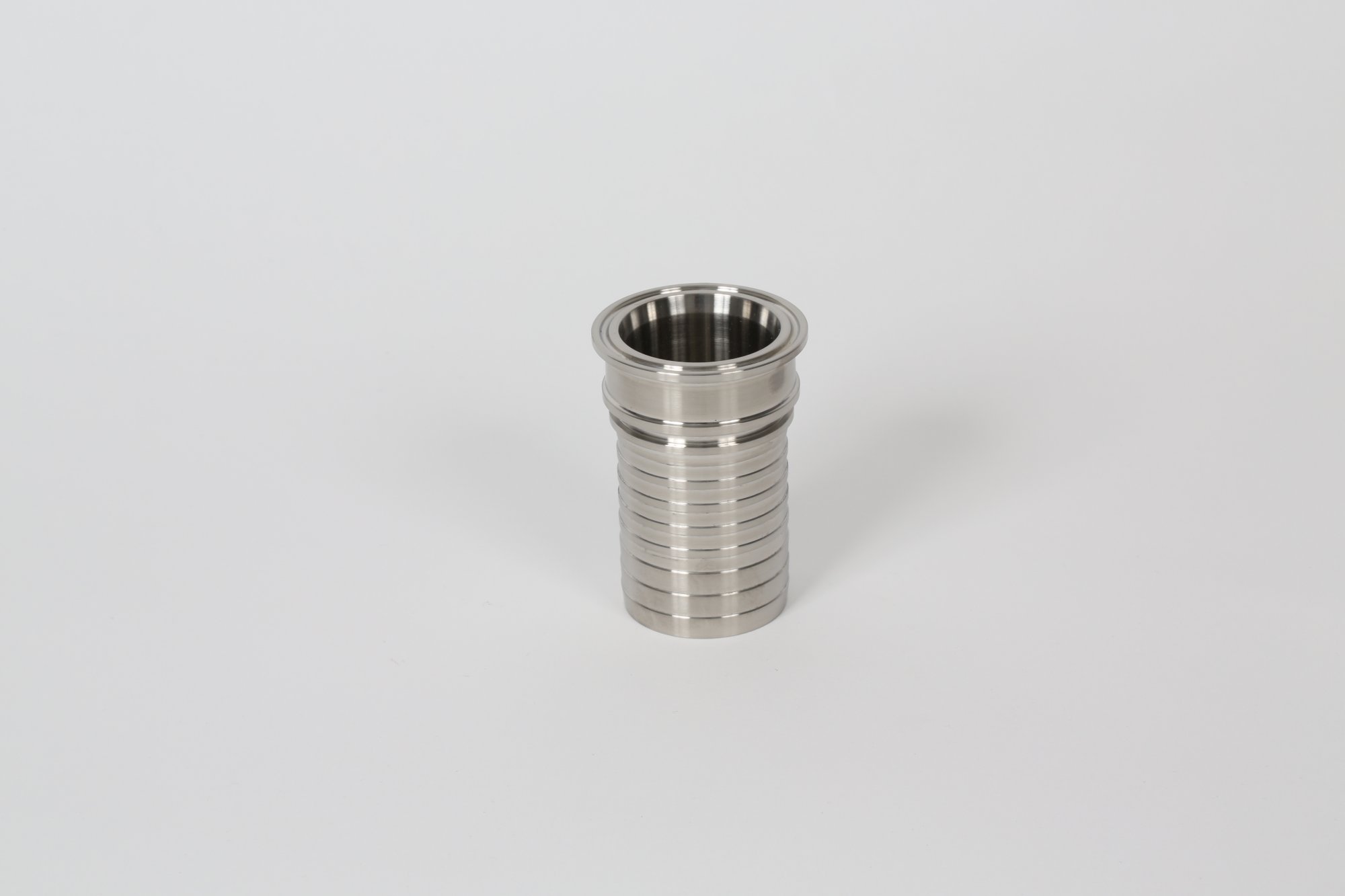

SANITARY STYLE CRIMP STEM – CLAMP END X HOSE SHANK

Call for price

Description

Applications:

Recommended for food, dairy and pharmaceutical applications where increased flow capacity is important.

Features:

Sanitary style end

Safety Notes:

  • Dixon sanitary crimp stems are only to be used with Dixon sanitary stainless steel crimp ferrules.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Strict adherence to ferrule O.D. range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assemblies (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
  • 316 Stainless Steel, Crimp Stem Clamp End x Hose Shank

Specifications

Size Part # Weight (lbs)
1" CSSR100 0.4000
1 1/2" CSSR150 .4100
2" CSSR200 0.9600
2-1/2" CSSR250 1.170
3" CSSR300 1.3800
4" CSSR400 1.9200
