UFD – TOUGH SEVERE SERVICE APPLICATIONS

Thermoplastic polyurethane reinforcement is abrasion and puncture resistant. Clear cover allows users to locate blockages

SKU: N/A
Category:
Tag:

Description

Applications:
• Superior abrasion resistance
• Lightweight and flexible
• Leaf loading, chip handling, dust collection, straw blowing, etc.

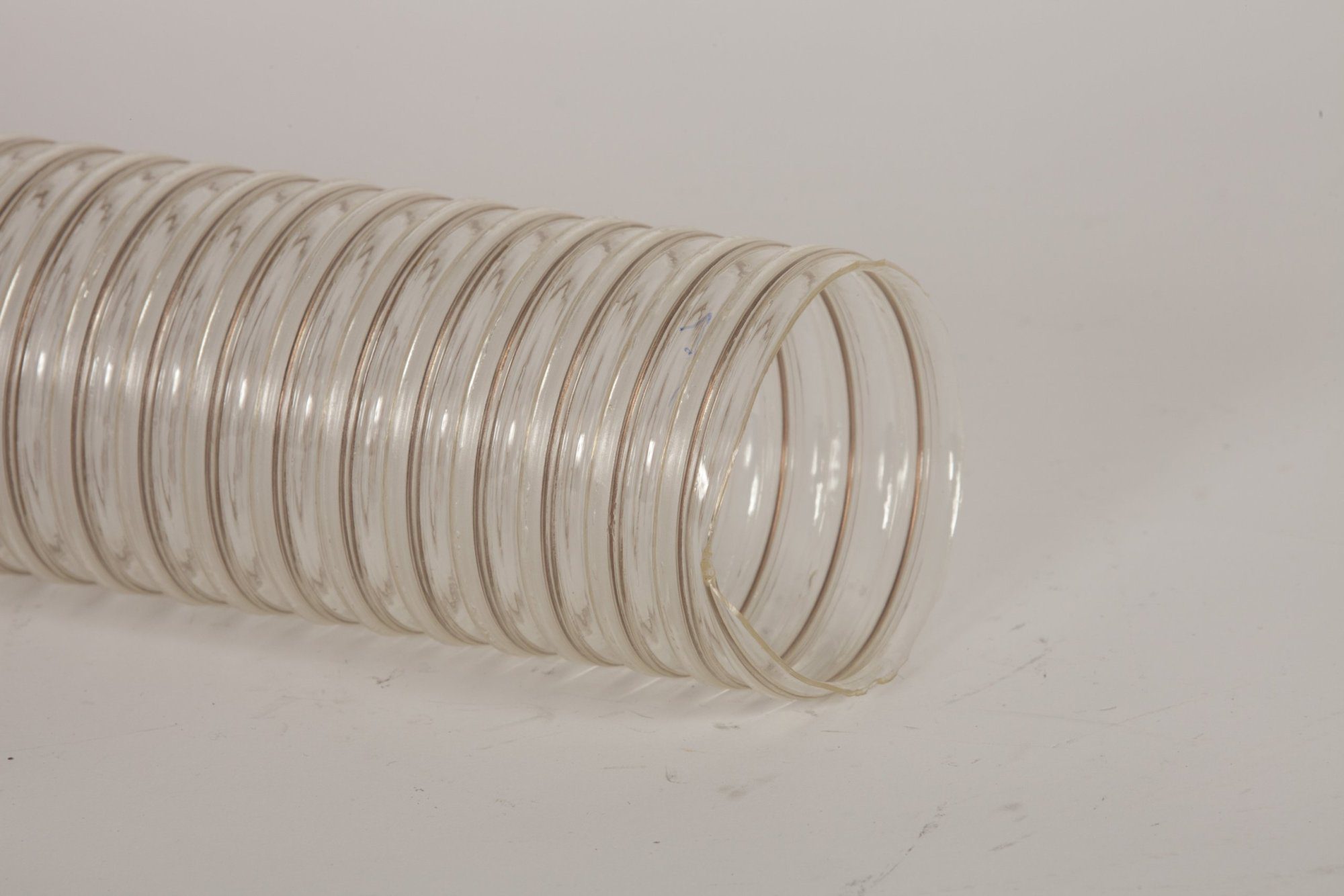

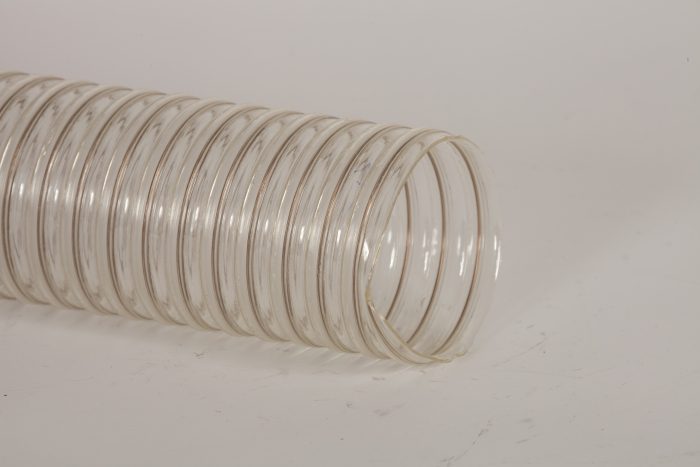

• Clear so you can see blockages (also in black)
Tube:
• Thermoplastic urethane
Reinforcement:
• Wire helix
Temp Range:
• -65°F to +200°F

Specifications

Black Part# Clear Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Weight

(lbs/ft)

Standard

Length

UFDBK200 UFDCL 2 2.29 33 .28 25,50
UFDBK250 UFDCL 2 1/2 2.79 30 .42 25,50
UFDBK300 UFDCL 3 3.32 27 .53 25,50
UFDBK400 UFDCL 4 4.34 18 .69 25,50
UFDBK500 UFDCL 5 5.34 16 .81 25,50
UFDBK600 UFDCL 6 6.37 14 1.23 25,50
UFDBK700 UFDCL 7 7.40 12 1.47 25,50
UFDBK800 UFDCL 8 8.40 11 1.60 25,50
UFDBK1000 UFDCL 10 10.41 9 1.84 25,50
UFDBK1200 UFDCL 12 12.41 7 2.20 25,50
UFDBK1400 UFDCL 14 14.56 4 3.28 25,50
UFDBK1600 UFDCL 16 16.59 2 3.75 25,50
UFDBK1800 UFDCL 18 18.59 2 4.23 25,50

Additional information

Diameter

2-1/2", 2", 3", 4", 5", 6", 7", 8", 10", 12", 14", 16", 18"

Colour

Black, Clear
