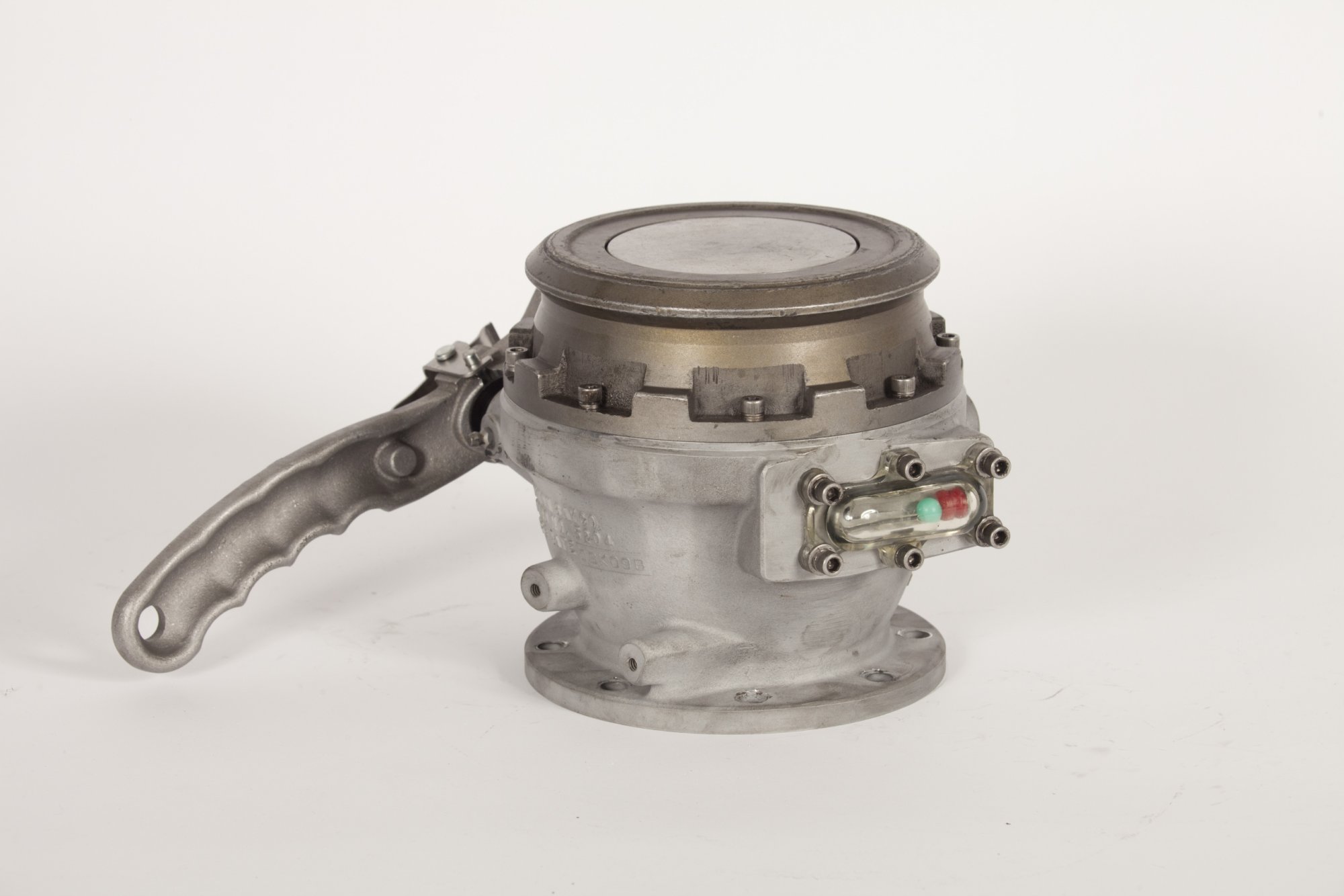

5204 DIXON API VALVES

Call for price

Description

Applications

-Used for bottom loading and unloading petroleum tankers, load/unload valve permits both terminal loading and fuel unloading through the valve

Specifications

-Manufactured to American Petroleum Institute standard, which allows for positive connection to drop adapters and rack couplers such as Dixon Bayco 5300/5400 series rack coupler.

Features

-Ergonomically curved handle operates on a short 62° degree stroke
-Any required maintenance is simplified, Dixon Bayco API Valves can be completely rebuilt without the need to remove the valve from the tanker
-Nose ring has a anodized hard coat aluminum, which in most applications will provide years of trouble free service. Nose ring can be rotated to provide a fresh connection service.

Construction

-Aluminum body with anodized hard coat aluminum nose ring and stainless steel hardware
-Fixed aluminum handle
-Baylast seals

Specifications

Part # Description #
5204NG Fixed handle, without sight glass, ALH nose ring, Baylast™ seal
5204 Fixed handle, sight glass, ALG nose ring, Baylast™ seal
5204C Removeable Handle, sight glass,  ALH nose ring, Baylast™ seal
5204NGC Removeable handle, without sight glass, ALH nose ring, Baylast™ seal
5204SNG Fixed handle, without sight glass, ALH nose ring, stainless steel spring for curde oil, Baylast™ seal
5204TNG

Fixed handle, without sight glass, ALH nose ring, Teflon™ seal

5204NGV Fixed handle, without sight glass, Viton seals
5204FI Fixed handle, with inline full body sight glass, ALH nose right, Baylast™ seal
