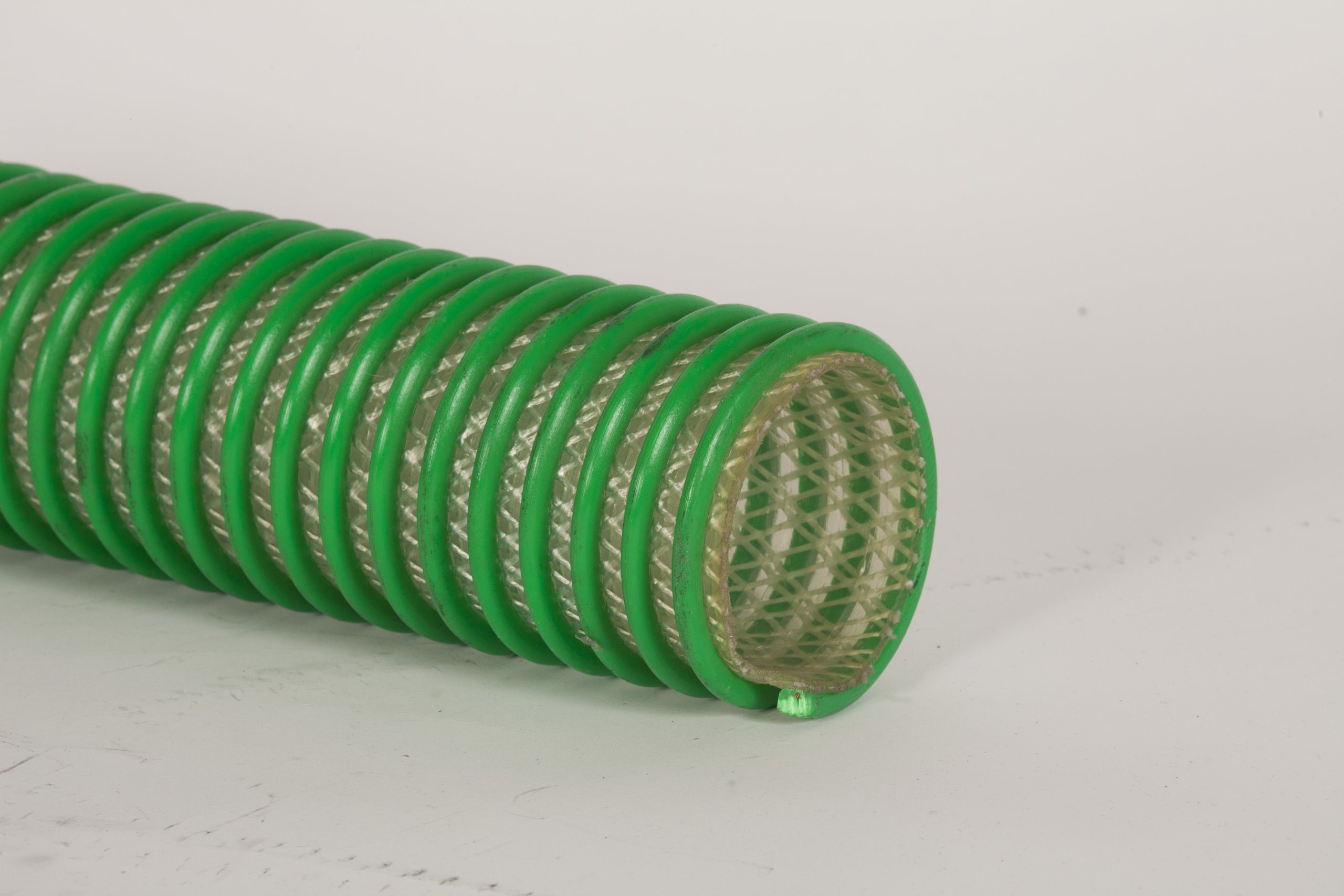

KURITEC EGDH – URETHANE TUBE

DROP HOSES

Applications: Used for gasoline tank truck gravity drop. See-through construction allows visual confirmation of flow

Call for price

Description

Applications:
• Easily handles gasoline/fuel blends made with MTBE’s, methanol, ethanol, toluene, naphtha, kerosene, benzene, and MEK
• Aromatic content not to exceed 50%
• Remains super-flexible in sub-zero weather
• “See-Through” construction allows visual confirmation of flow
• Easy to handle because hose slides easily and is lighter then any other drop hose

Tube:
• Clear non-permeable polyurethane

Reinforcement:
• Polyester fabric – braided

Cover:
• Corrugated green PVC helix with embedded copper static grounding wire

Temp Range:
• -40°F to +150°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length (ft)

EGDH303 3.03 3.78 65 6.0 1.20 100
EGDH404 4.04 4.82 65 8.0 1.70 100

Banding Sleeves for TigerFlex TDH Drop
Hose. Banding sleeves must be used for 3”
and 4” sizes to relieve stress behind fitting

Part #

I.D

(in.)

Weight

(lbs/ft)

Standard

Length ( ft)

SLVGR300 3 1.20 3
SLVGR400 4 1.70 3
